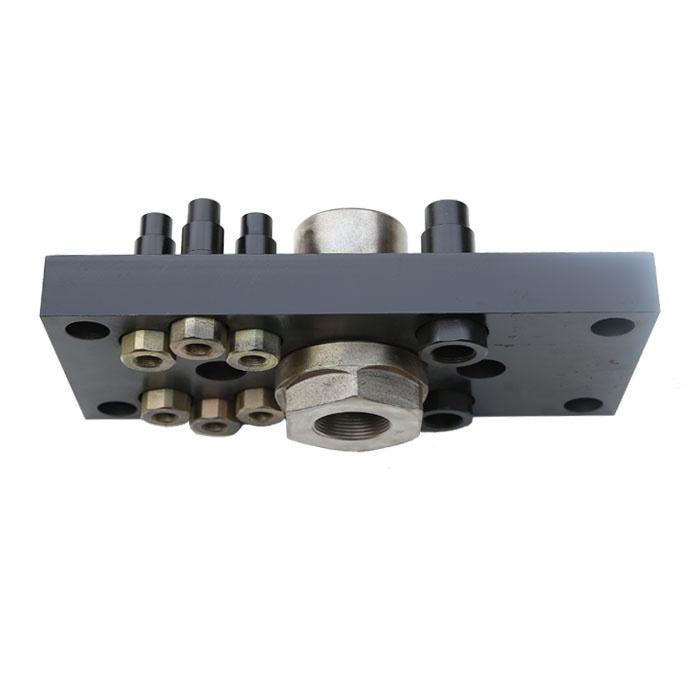

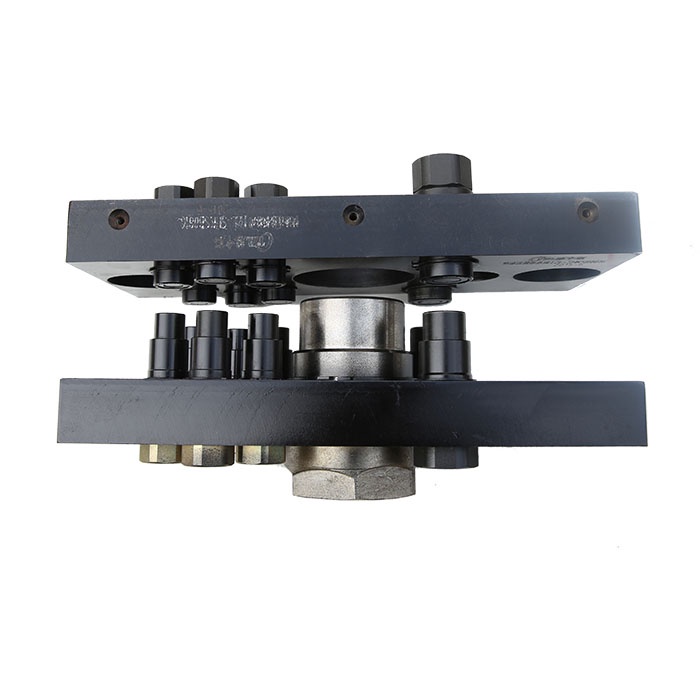

Quick‑Connect Plate Assembly

Quick‑Connect Plate Assembly
Technical performance: Internal cams and locking pins
Assembly and disassembly system: Rotating lever
Surface treatment: Alloy oxidation, hardness enhanced blackening heat treatment
Material: Carbon steel (galvanized steel, galvanized steel with nickel) stainless steel
Technical parameters: The maximum allowable misalignment (X/Y-axis) for the quick connector is 3mm
The maximum allowable angle deviation is 0.2
The maximum deviation (Z-axis) is 3mm
WhatsApp:
E-mai: sdtttt@163.com
Product Details

As a comprehensive manufacturer of various connectors, Tongzhou Zhonglian carefully listens to the voices of customers and continuously develops new products and upgrades to meet customer needs. The Quick Multi-Connector is a high-quality, efficient and safe product, with particular attention paid to the compact and highly functional structure, multi-path quick operability, providing the safety and reliability required for multiple quick multi-connector combinations; as part of a complete technical equipment, the hydraulic circuit offers a wide range of solutions for disconnection or connection simultaneously, with the sizes and media of each path connector being the same or different according to application needs. This Quick Multi-Connector is suitable for the light industry and industrial fields as well as for use by aerospace operators. To maintain the high technical performance and reliability of the Quick Multi-Connector, we recommend regular inspection and maintenance. Therefore, our customer service department can provide you with support on the best maintenance and replacement of components in the products, minimizing production downtime and ultimately preventing the time-consuming process of maintenance and repair.
