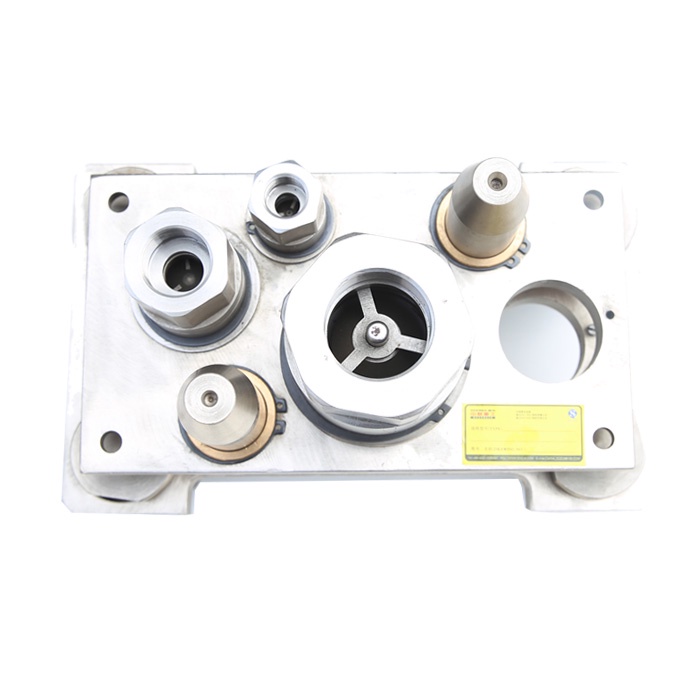

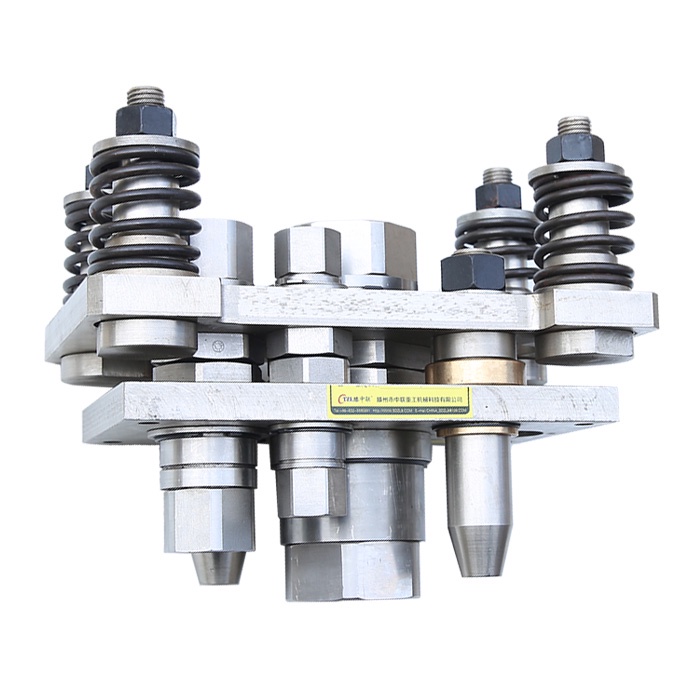

As a comprehensive manufacturer of various connectors, Tongzhou Zhonglianzi Niu listens to the voices of customers and continuously develops new products and upgrades to meet customer needs. The Quick Multi-Connector is a high-quality, efficient and safe product. It particularly focuses on the compact and highly functional structure, the multi-path quick operability, and provides the safety and reliability required for the combination of multiple quick multi-connectors. As part of a complete technical equipment, the hydraulic circuit offers a wide range of solutions for disconnection or connection simultaneously, and the dimensions and media of each path of the connectors can be the same or different according to the application needs. This Quick Multi-Connector is suitable for the light industry and industrial fields as well as for use by aerospace operators to maintain the high technical performance and reliability of the Quick Multi-Connector. To ensure the high technical performance and reliability of the Quick Multi-Connector, we recommend regular inspections and maintenance. Therefore, our customer service department can provide you with the best support for maintenance and replacement of components related to the products, minimizing production downtime and ultimately preventing the time-consuming process of maintenance and repair.

Installation Instructions:

1: The quick coupler must be installed according to the overall installation technical parameters and installation instructions.

2: Check whether the multi-coupler and the internal components are externally damaged with the coupling quick connector.

3: The installation must be operated by an experienced or knowledgeable staff member.

4: To avoid the risk of tripping, all multi-coupler connections (cables, hoses, and pipes, as well as coupling quick connectors) must be laid out to avoid obstacles.

5: Before installing the quick coupler or before the first system debugging, the pipelines must be cleaned.

6: If necessary, the medium components must be removed to avoid damaging the gaskets.

7: Lubricate the connecting parts, locking bolts, and bushings and other components before connecting the multi-coupler.

8: Tighten the locking bolts and the connecting parts and bushings and other components.

9: Determine the dimensions and clean the installation.
