Product Introduction

1. Flange‑connected type
2. Pipe‑butt‑welded type

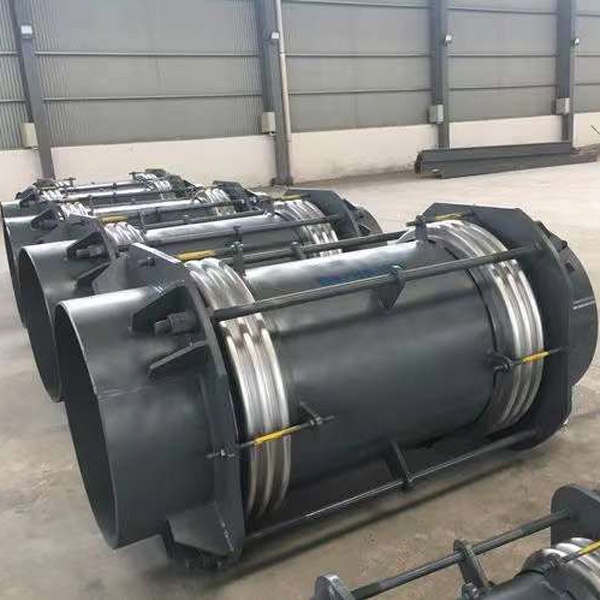

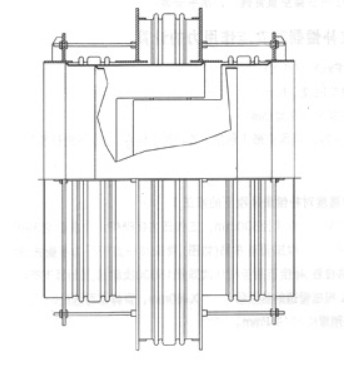

1. Structural Sketch of Stainless‑Steel Bellows Expansion Joint




2.

3.


   Structural Features of Stainless‑Steel Bellows Expansion Joint The stainless‑steel bellows expansion joint is equipped with one working bellows at each end and a balancing bellows in the middle. The pressure‑bearing components (tongue tubes) bear the internal pressure thrust for the compensator.

4. Compensation Characteristics This product can absorb axial displacement of the piping system while self‑balancing internal‑pressure thrust. It is applicable for high‑elevation straight pipelines or large‑diameter pipe systems where fixed supports cannot be conveniently arranged.

5. Notes on Installation and Application This stainless‑steel bellows compensator is generally installed horizontally on overhead straight pipelines.
